Live
Design speed & fidelity
Fast, precise editing for harnesses and subsystem diagrams.
Automated DRC.Production‑ready outputs.
Scope: create library components
No more tribal knowledge hidden in Dave's notebook - we normalize parts before they haunt the build review.
Create a new device part, attach existing library connectors, then place the device on the canvas.
Build: connect devices and nets
Route nets without playing cable guessing roulette. Bonus: technicians stop asking if the spreadsheet is the latest one.
Create mating connectors, assign parts from Link in the library, and assign a cable to those nets.

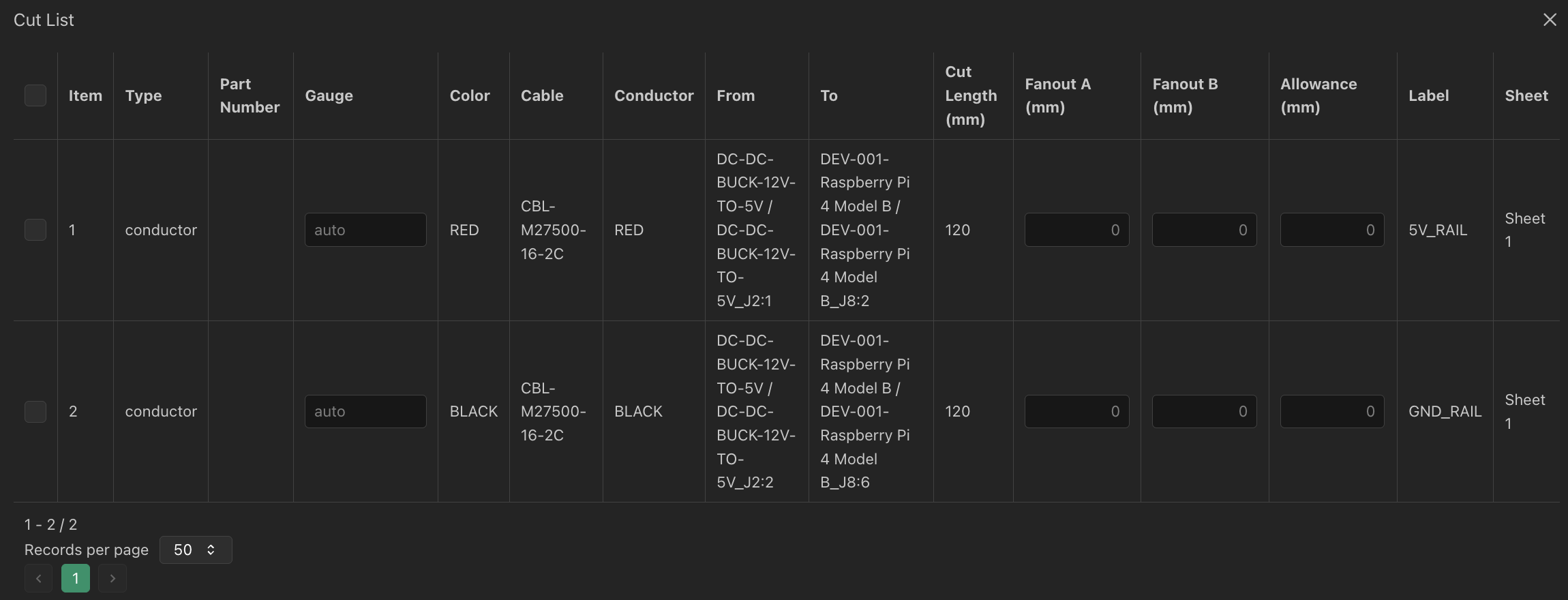

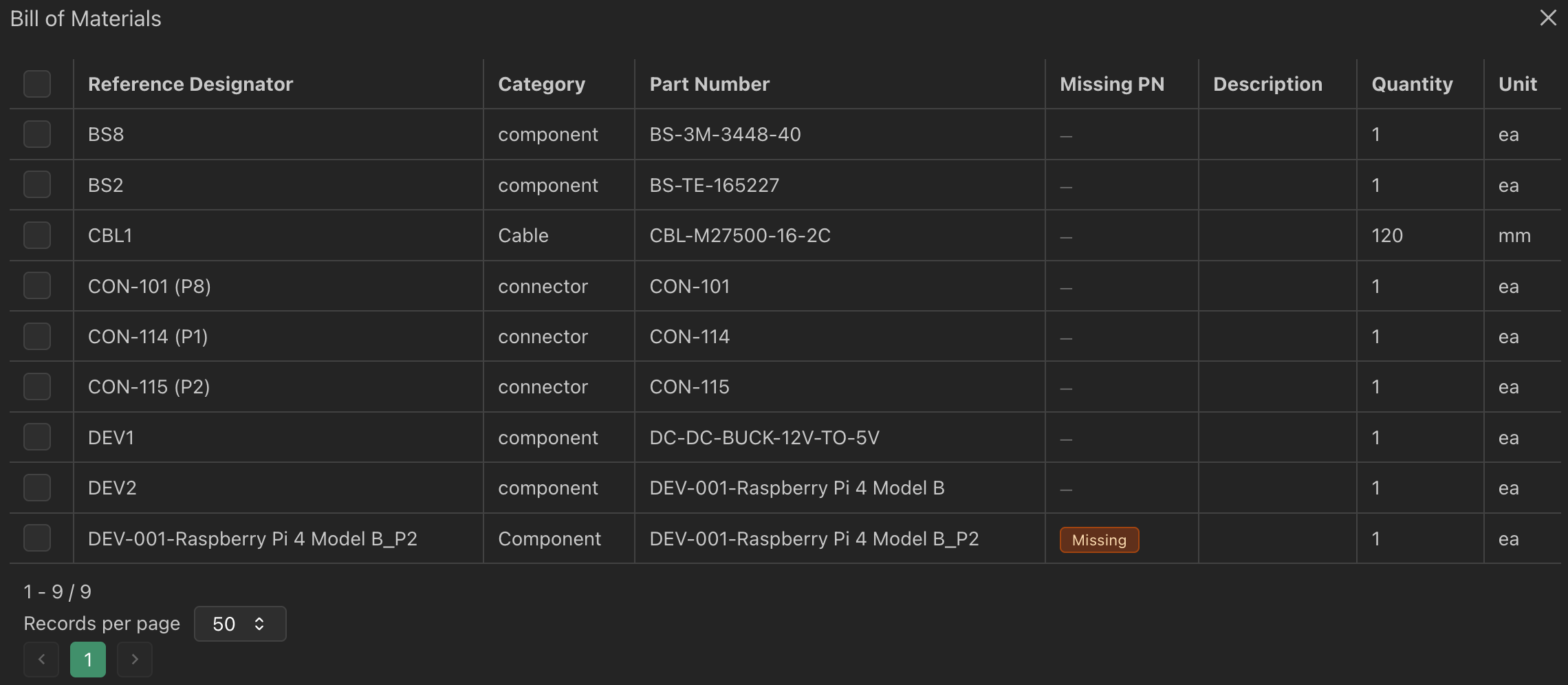

Release: live BOM and cutlist
We keep tabs on the parts list so the only thing triple-ordered is the celebratory pizza - not 600 extra Molex connectors.
WireIt provides live BOM, cutlist, and pin tables for traceability—and flags missing part numbers so procurement stays smooth.
Production: finalize drawings & exports
One click generates the PDF with notes, BOM, cutlist, and pin tables—so the floor stops asking which version is actually real.
Rename sheets, layer in engineering notes, and push out a PDF packet that already includes the drawing preview, BOM, cutlist, and pin-to-pin tables.
- Browser-native workspaceDesign, review, and hand off from any Chromium browser—no desktop installs or VMs. Cloud or on‑premises; air‑gapped optional.
- Exports on demandGenerate PDFs and CSV packets directly from the live model at every stage.
- Technician-ready outputsTitle blocks, cable labels, and cutlists stay current with every change.
Industry signal
“Currently under evaluation with industry‑leading engineers. Multiple teams have requested access to use WireIt in their workflows.”
In-flight with scope → build → release
(Rumor has it the technicians stopped calling the managers “PowerPoint engineers” after the first week.)
The electrical system stack
Six pillars build the singular platform—see what’s live now and what’s landing next.
ScopeBuildReleaseEach pillar reinforces the lifecycle mission.
In pilot
Electrical correctness
Rule engine and calculators keep designs production-ready.
Upcoming
3D harness routing
Round-trip lengths and slack with MCAD in the loop.
Live
Parts & BOM
Sourcing intelligence woven directly into design decisions.
Live
Manufacturing outputs
Production packages that match the canvas, every time.
In pilot
Collaboration & change
Git-like versioning with branches, commits, and merge. Approvals and telemetry coming soon.
Electrical lifecycle, end-to-end.
Align specifications, build with confidence, and release without drift—all in WireIt.
Scope
Normalize drawings and specs into a single project.
Build
Design harnesses and subsystem diagrams with live rules and sourcing.
Release
Ship cutlists, approvals, and feedback loops directly from the same source.
Production
Generate exports and drawing packets so the shop builds what you signed off on.
Common questions
Short answers, real guardrails. Reach out if you need a deeper dive.
Ready to ship without redraws?
Spin up a project in minutes or chat with the founders. Your BOM, cutlist, and drawing will match the canvas.
